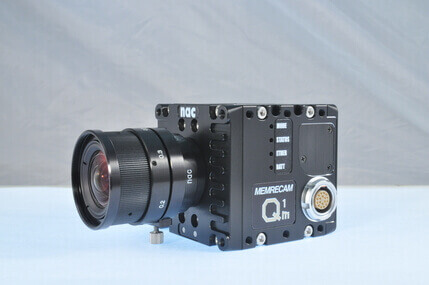

MEMRECAM QCAM
Features
- CMOS Sensor: All Active Pixels
- Bit Depth: 12/10/8-bit (customer selectable)
- Electronic Shutter
- Compact Camera Design: 62(H) X 62(W) X 65(D)mm, 400g.
- Ruggedized Camera System: MEMRECAM Q Series cameras are designed to withstand 150G shock for 10ms. The camera is ideally suited for onboard automotive testing applications.
- C-Mount Lens is Standard: Sensor uses a 2/3-inch optical format.
- Built-In Hi-G Trigger Circuit
- Built-In Memory Backup
- High Light Sensitivity
- Gig-E Communications: Supports simultaneous download of multiple MEMRECAM cameras.
- Multi-Camera Operation with Precise Synchronization
- Power Input: 20-32 VDC
- Power Consumption: 20W
MEMRECAM ACS 1
Features
- Auto Black Balance: Auto Correction by Mechanical Shutter
- Memory Segment: Up to 64 Segments With 64 Blocks
- Built – in SSD * 1: Faster Auto Storage into Built – in SSD Backup Image
data while recording - Download Rec: Recording to a memory segment in parallel with downloading to another memory segment
- Image Trigger: Triggered by intensity shifts sensed at the minimum area of 21 X16 pixel
- Dual Framing Rate: 1x and 1/2~1/100x
- CAM MODELED Status: LED: Ready/View/Arm/Rec
MEMRECAM ACS 3
Features
- Boost Mode: For increased FPS or Vertical Resolution
- Auto Black Balance: Auto correction by Mechanical Shutter
- Memory Segment: Up to 64 Segments
- Built-in SSD *1: Faster Auto Storage into Built-in SSD Backup image data while in recording
- Faster Download: Download via USB3.0B (to PC)
- DOWNLOAD REC: Recording to a memory segment in parallel with downloading to another memory segment
- Image Trigger: Triggered by intensity shifts
- Dual Framing Rate 1x and 1/2～1/100x
- CAM MODE LED: Status LED : READY/VIEW/ARM/REC
- Fan Control: Pause/Auto fan control/Compulsory Cooling mode
MEMRECAM Q5
Features
- Compact DRP Design: 195W x 40H x 125D, 1.8kg
- Multiple Micro Camera Options: µ-Cam, C-Cam, P2-Cam and S2-Cam
- Ruggedized System Design
- Built-In Hi-G Trigger Circuit
- Built-In Memory Backup
- Gig-E Communications
- Multi-Camera Operation with Precise Synchronization
- Power Input: 20-32VDC
- Power Consumption: 50W (4X cameras plus DRP)
MEMRECAM HX
Features
- CMOS Sensor: 2560 X 1920— all Active Pixels
- Bit Depth: 12/10/8-bit (customer selectable)
- Electronic Shutter: 10msec to 1.1usec
- Standalone Operation: Compact, lightweight camera requires no laptop or PC for local control.
- Simultaneous Record and Download: Simultaneously record to one memory segment while downloading data from a second memory segment.
- Fast Data Download: Record to commercial off-the-shelf non-volatile HDD media at up to 500MB/sec.
- Variable Framing Profile: Test using a variety of frame rates, sequentially or in parallel.
- Versatile Recording: Burst, multi-trigger, restart-trigger and image trigger.
- A-EST Mode: High resolution timing and sync system.
- Straddle Mode: Inter-frame time for PIV applications equals 286 nanoseconds.
- Dual Segment Recording: Simultaneously record to two distinct memory segments at two different imaging speeds.
- Ultra-High Light Sensitivity
- Ruggedized for Range Use
Ultra Highspeed Camera (UHSi 12/24)
Features
- 200 Million frames per second
- 5ns Gating
- Up to 24 Independently Programmed Frames
- Megapixel Performance
- Intensified
- Optical viewfinder
- GigE PC Interface
- IVV Imprint PC software for control/analysis
- Compact, rugged design
- Versatile triggering including ‘Synchro’ mode
- Photocathode options: S20 (UV biased, UV to Visible) or S25 (Visible
biased, UV to NIR)

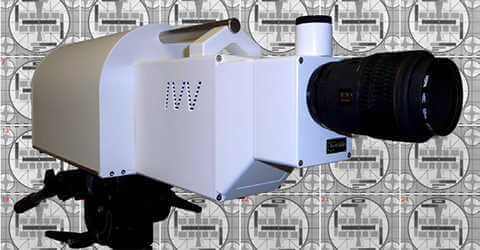

Ultra Highspeed Camera (UBSi 12/24)
Features
- 1ns (optically calibrated) Gating and Interframe
- Up to 24 Independently Programmed Frames
- Megapixel Performance
- Intensified
- Optical viewfinder
- GigE PC Interface
- IVV Imprint PC software for control/analysis
- Compact, rugged design
- Photocathode options: S20 (UV biased, UV to Visible) or S25 (Visible
biased, UV to NIR)
What is a High Speed Camera and High Speed Imagine Technology?
About High Speed Camera
High Speed Cameras are devices that captures moving images at super fast speeds of less than one-thousandth of a second. Their frame rates are often greater than 100,000 frames per second. Often used for slow-motion analysis and scientific experiments, High Speed Cameras are one of the many products that EastWest SVC Pte Ltd distributes.
About High Speed Imaging Technology
High Speed Imaging refers to the technology that is being used to allow cameras to capture motions at high speeds. Also known as High-Speed Photography, the technology is also used to analyze physical and mechanical properties of specific materials. Scientists rely on high-speed images in the laboratory.
