Spectrometers and Spectroscopy Products based in Malaysia
Click on the products below to navigate around quickly
QE PRO
Features
- Wavelength range: Configurations
support the range of 185–1100 nm - Interchangeable slits: Multiple widths from 5 μm-200 μm; SMA/FC bulkhead with no slit also an option
- Optical resolution: 0.14-7.7 nm FWHM (depends on grating and size of entrance aperture)
- System SNR: 1000:1
- A/D resolution: 18 bit
- Dynamic range: 85,000 (typical)
- Stray light: <0.08% at 600 nm; 0.4% at 435 nm
- Buffering: 15,000 spectra
- TEC: Cooling to -40 oC below ambient -40 oC to +50 oC temperature limits
- Internal shutter (optional): Actuation time: 11 ms; signal attenuation 0 dB (100% attenuated)
FLAME
Features
- Range: 190-1100 nm
- Resolution: From 0.1 nm (FWHM)
- SNR: 250:1
- Dynamic range: 1300:1 (single acquisition)
- Thermal stability: 0.02 nm/° C (650 nm range), 0.06 pixels/° C
- Integration time: 1 ms – 65 s
- Power: 5V USB
- Size: 88.9 x 63.5 x 31.9 mm (34.4 mm with feet); 3.5 x 2.5 x 1.26″ (1.35” with feet)
- Weight: 265 g (0.58 lb.)
- Scan rate (maximum): ~400 Hz*
MAYA
Features
- Size: 148.6 mm x 109.2 mm x 49.3 mm (including feet)
- Weight: 0.96 kg (without power supply)
- Spectral range (depends on detector and grating selection):
~165-1100 nm (response w/Hamamatsu S10420 detector)
~400-1180 nm (response w/Hamamatsu S11510 detector)
- Signal-to-noise ratio: ~450:1
- Dynamic range: 15000:1 (typical)
- Integration time: 7.2 ms-5 seconds
- Configurable for vacuum UV (<190 nm) applications
- Also available: Preconfigured models for good Vis-NIR response (Maya2000 Pro-NIR, 780-1180 nm) and low stray light performance (Maya LSL, 360-825 nm)
USB2000+
Features
- Size: 89.1 mm x 63.3 mm x 34.4 mm
- Weight: 190 g
- Wavelength range: Grating dependent within 200-1100 nm
- Signal-to-noise ratio: 250:1 (at full signal)
- Dynamic range: 8.5 x 107 (system); 1300:1 for a single acquisition
- Integration time: 1 ms – 65 s (20 s typical)

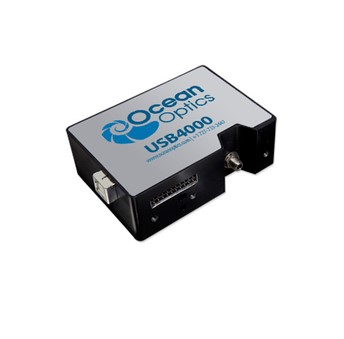

USB4000
Features
- Size: 89.1 mm x 63.3 mm x 34.4 mm
- Weight: 190 g
- Wavelength range: 200-1100 nm
- Signal-to-noise ratio: 300:1 (at full signal)
- Dynamic range: 3.4 x 106 (system); 1300:1 for a single acquisition
- Integration time: 3.8 ms – 10 sec
HR2000+
Features
- An optical resolution of ~0.035 to 6.8 nm (FWHM)
- A wide variety of optics available in 14 gratings; 6 slit widths; and 6 optical filters, 1 order-sorting filter
- Electrical Performance: 14 bit, 5MHz A/D Converter; and Integration times from 1 ms to 65 s
- 4 or 5 triggering modes (depending on firmware)
- Plug-n-Play Interface for PC applications
- 30-pin connector for interfacing to external products
- CE Certification

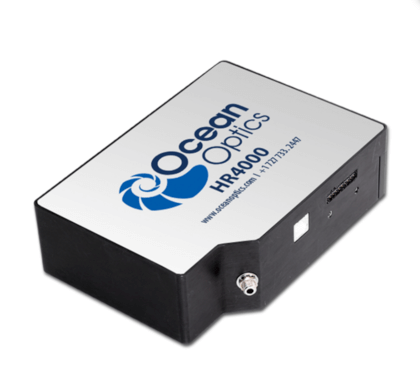

HR4000
Features
- Size: 148.6 mm x 104.8 mm x 45.1 mm
- Weight: 570 g
- Wavelength range: 200-1100 nm
- Signal-to-noise ratio: 300:1 (at full signal)
- Dynamic range: 3.4 x 106 (system); 1300:1 for a single acquisition
- Integration time: 3.8 ms – 10 sec
FX
Features
- Spectral range: 200-1100 nm (configurable within this range)
- Optical resolution: Depends on configuration; 0.8 nm (FWHM)
- SNR (single scan): 290:1
- Dynamic range (single scan): 5000:1
- Integration time: 10 μs-10 seconds
- Scan rate (maximum): 4,500 scans/second*
- Onboard processing: Buffer depth (up to 50,000 spectra); averaging (up to 5,000 spectra)
- Thermal stability: 0.11 pixels/° C
- Entrance slit: 5, 10, 25, 50, 100 or 200 μm width slits
- Input fiber connector: SMA 905 or FC
HDX
Features
- Detector: Back-thinned CCD
- Spectral range: 200-1100 nm (w/extended range option)
- Optical resolution: 0.75-1.2 nm (FWHM)*
- SNR: 400:1
- Dynamic range: 12,000:1
- Stray light: >3 AU
- Integration time: 6 ms-10 seconds
- A/D resolution: 16 bit
- Thermal stability: +/-1.0 pixels over 0-40 °C
- Communications: USB, Gigabit Ethernet, Wi-Fi, AP Wi-Fi, RS-232
- Onboard memory: Store up to 50,000 spectra
- Operating temperature: 0-40 °C
- Physical: 88.9 x 63.5 x 52.4 mm dimensions, 400 g weight
FlameNIR
Features
- Range: 900-1700 nm (detector) 950-1650 nm (preconfigured)
- Resolution: ~10.0 nm (FWHM, 25μm slit)
- SNR: 6000:1
- Dynamic range: 6000:1 (single acquisition)
- Thermal stability: 0.08 nm/° C (over 670 nm range)
- Scan rate (maximum): ~400 Hz*
- Power: 5V USB
- Size: 89.1 mm x 63.3 mm x 31.9 mm (excluding feet)
- Weight: 265 g
NIRQUEST
Features
- Key specifications (based on NIRQuest512-1.7 model)
- Detector: 512-pixel InGaAs diode array
- Wavelength range: 900-1700 nm (other models up to 2500 nm available)
- Optical resolution: ~3.1 nm (FWHM) with 25 μm slit (standard configuration)
- Integration time: 1 ms-120 seconds
- Data transfer speed: Full scan to memory every 5 ms with USB 2.0 port
- SNR (at full signal): 15000:1 (at 100 ms integration time)
- Dynamic range: 15000:1 (single acquisition)
- Thermoelectric cooling: -21 °C to -38 °C below ambient
- Interchangeable slit design: Select from slit widths of 5 μm-200 μm
- Internal shutter (optional): Actuation time of 11 ms; signal attenuation 0 dB (100% attenuated)
MZ5 ATR-MIR
Features
- Spectral range: 1818–909 cm-1 (5.5-11 μm)
- Signal to noise: >300:1 (60 s measurement)
- Spectral bandwidth (FWHM): 75 cm-1
- Measurement time (typical): ~30 seconds
- Operating environ.: 0–45 °C non-condensing
- Storage environment: 0-60 °C non-condensing
What are spectrometers?
Spectrometers are used for industrial applications which include scientific experimentation. The typical function of a spectrometer is to separate matter such as particles, atoms and molecules. Depending on what your requirements are, the spectrometer that you are looking for could vary. Some spectrometers such as LIBS and Raman Spectrometers are just a few kinds of spectrometers that EastWest SVC distributes.
