GSVITEC High Power UV/NIR LED Sources
GSVITEC provides High Power UV, NIR, and colour LED sources in Singapore for any applications in high-speed cameras and many applications in the machine vision market.
Designed from a decade of experience with thousands of customer projects in mind, GSVITEC MultiLed products offer ultra-strong lighting at an affordable price.
GSVITEC Product Category
Click on the products below to navigate around faster

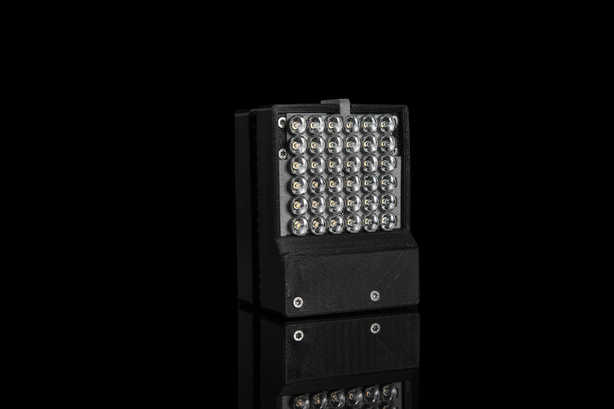

Multiled CT
The MultiLed CT is a standalone lamp head for continuous operation
- Exchangeable lenses
- White or colour LED
- Pulsed or continuous
- Small size
- Down to 200 ns strobe
Key Features
- Easily exchangeable lens available: 15°, 25°, 45°, 75°
- 12.000 Lumen
- White White or Color LED
- Continuous or pulsed operation
- Bottom and top 1/4-inch standard thread for photographic accessories and mount
Multiled IT
The MultiLed IT is a standalone lamp head for continuous operation
- Exchangeable lenses
- White or colour LED
- Pulsed or continuous
- Small size
- Down to 200 ns strobe
Key Features
- Easily exchangeable lens available: 15°, 25°, 45°, 75°
- High Power IR UV LED
- Continuous or pulsed operation
- Bottom and top 1/4-inch standard thread for photographic accessories and mount

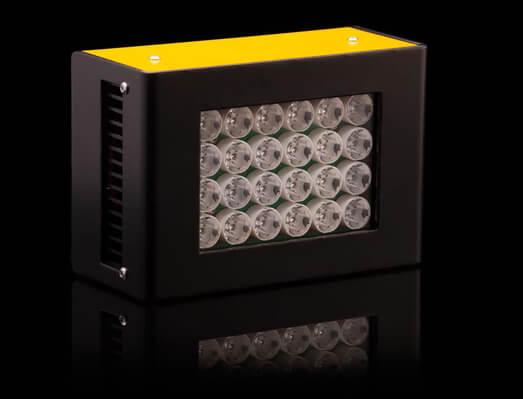

Multiled PT
Multiled PT
- Pulsed or continuous Light
- 30% overdrive when pulsed
- White LED
- Option: colour LED
- Long lifetime ( 50.000 h+)
- Small size
- Low heat radiation
- Less power consumption
Key Features
- 24 High power LEDs, 84 Watt, 24 Volt (7.700 lm in continuous mode, 10.000 lm in overdrive mode)
- Potentiometer for brightness control
BNC TTL trigger input up to 30 kHz, invertable or continuos - Robust and highly available XLR jack
- fan inside
- Environmental protection: as IP20
- bottom 1/4“ standard thread for photographic accessories and mount
- Lenses: standard 15° FWHM
- Dimensions: 160*117*80 mm
- Power supply and 5m XLR cable included.
- Option: longer cables or other cable types on request.

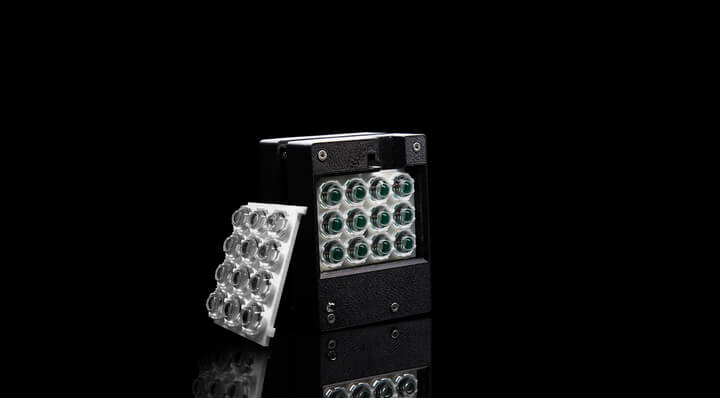

Multiled QT
The MultiLed QT is a standalone lamp head for continuous operation.
- Exchangeable lenses
- 12.000 Lm white
- Pulsed or continuous
- Small size
- Down to 200 ns strobe
Key Features
- Easily exchangeable lens available: 15°, 30°, 50°, 60°
- 12000 Lumen
- Standard desktop power supply with 5 m cable included
- White light (look at CT model for color LED)
- 150W 48V
- Continuous operation
- Bottom 1/4-inch standard thread for photographic accessories and mount
- Status LED
- Uses standard Ethernet CAT6 S/FTP cable 1:1

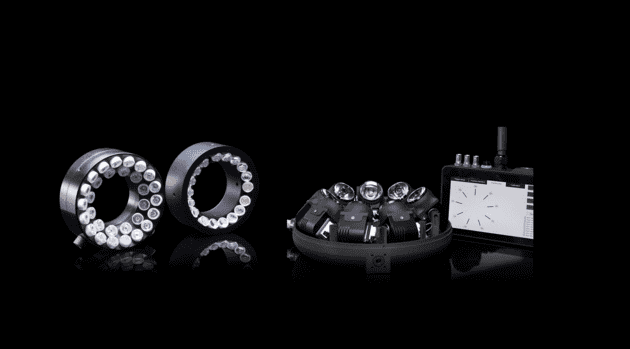

R100 200
MULTILED R-SERIES RING LIGHT
- For macro and microscopy
- Pulsed or continuous light
- White LED
- Option: colour LED
- Perfect image quality
- Low heat radiation
Key Features
- Several million Lux in the focus point. Depending on camera sensitivity, up to aperture 22 at 1 microsecond
exposure can be achieved. - Color LED for R100 only
- LED power is focused 50 mm from the front of the unit to a spot of 40*40mm. Other working distances on request.
- Inner diameter 78 mm, outer diameter 140 mm, height 70 mm incl. connectors. 2*standard 1/4“ threads on the side
(90° to each other) - Passively cooled , 10 % duty cycle continuously or up to 2 min. operation at 100% power. Continuous operation with
additional cooling module. - BNC, TTL, pulse width controlled up to 30 kHz
Frequently Asked Questions About High Power UV/NIR LED Sources In Singapore
What Is UV?
UV stands for Ultra Violet light and has shorter wavelengths that lie between visible light and x-rays. UV radiation wavelengths start at 10 nm up to 400 nm. They are further divided into subcategories depending on wavelength and characteristics, such as Near Ultraviolet which is visible to insects and birds.
What Is NIR?
NIR is short for Near-Infrared, which lies within the 750 to 1,400 nm wavelength, just a bit longer than the visible light spectrum. NIR is used in various applications, such as product identification, chemical and physical determination, and even astronomy.
What Is The Difference Between IR And NIR?
IR stands for Infrared and encompasses a wide range of wavelengths from 700 nm to 1mm. It is divided into a few subdivisions, one of which is NIR or Near Infrared. It is the one which is closest to the visible spectrum, just above 700nm.
What Are LEDs?
LEDs, or Light Emitting Diodes, are electronic components that release light when turned on. IR and UV LEDs are specialised LEDs that emit Ultra Violet light or Infrared Light instead of visible light.
