InfraTec.

InfraTec specializes in thermographic measurement technologies, infrared sensors, infrared cameras & detectors.

InfraTech Product Category

Click on the products below to navigate around faster

Active Thermography

Active thermography is an imaging procedure for non-destructive testing. A heat flow is induced by an energetic excitation of the test object, which can be done in a transmissive or a reflective setup. The resulting heat flow is influenced by interior material layers and defects. These inhomogeneities can be captured on the object surface by high-precision thermographic cameras. The additional application of different evaluation algorithms improves the signal-to-noise-ratio, which allows for detection of the smallest defects.

Airborne Thermography

Aerial Thermography

Aerial thermography provides you with a fast and wide area overview.

InfraTec offers various infrared camera systems for fixed mount use in airplanes as well as for integration into precision gimbals. Thereby, the infrared camera can be exactly positioned within a µrad range to track automatically. A handy remote control allows for camera operation directly via the control of the gimbal.

Gimbals, or gyro-stabilized platforms, have been used for many years as very effective systems for airborne thermography in the inspection of high-voltage power lines, pipelines and industrial plants, as well as in the search for energy and material pollution

ImageIR®

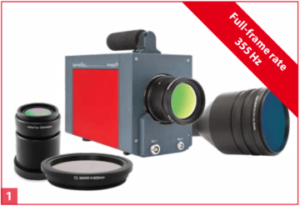

High-speed Thermography Camera - ImageIR® 8300hp

ImageIR_8300hp

Spectral range (2.0 … 5.7) µm

Pitch 15 µm

Detector MCT or InSb

Detector format (IR pixels) (640 × 512)

Image format with opto-mechanical MicroScan (IR pixels)* (1,280 × 1,024)

Image aquisition Snapshot

Readout mode ITR / IWR

Aperture ratio f/3.0

Detector cooling Stirling cooler

Temperature measuring range (-40 … 1,500) °C, up to 3,000 °C*

Measurement accuracy ± 1 °C or ± 1%

Temperature resolution @ 30 °C Better than 0.02 K

Frame rate (full / half / quarter / sub frame)

* Up to 355 / 670 / 1,200 / 5,000 Hz

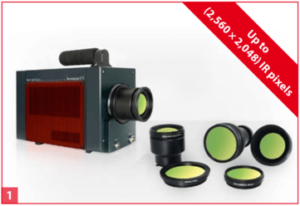

High-performance Thermography Infrared Camera - ImageIR® 9400

ImageIR_9400

Spectral range (2.0 … 5.5) µm or (3.6 … 4.9) µm

Pitch 10 µm Detector InSb

Detector format (IR pixels) (1,280 × 1,024)

Image format with opto-mechanical Micro-Scan (IR pixels) (2,560 × 2,048)

Image acquisition Snapshot

Readout mode ITR / IWR

Aperture ratio f/2.2 or f/3.0

Detector cooling Stirling cooler

Temperature measuring range (-40 … 1,500) °C, up to 2,000 °C*

Measurement accuracy ± 1 °C or ± 1 %

Temperature resolution @ 30 °C Up to 0.03 K / up to 0.02 K in high-speed mode

Frame rate (full / half / quarter / sub frame)*

Up to 180 / 342 / 622 /2,601 Hz;

high-speed mode: up to 622 / 1,053 / 1,615 /3,343 Hz

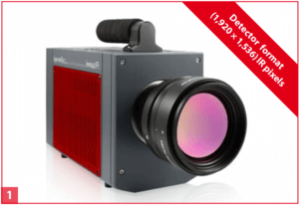

Full HD Thermography Infrared Camera - ImageIR® 10300

ImageIR_10300

Spectral range (3.6 … 4.9) µm

Pitch 10 µm

Detector InSb Detector format (IR pixels) (1,920 × 1,536)

Image acquisition Snapshot

Readout mode ITR / IWR

Aperture ratio f/2.0 or f/3.0

Detector cooling Stirling cooler

Temperature measuring range (-40 … 500) °C

Measurement accuracy ± 1 °C or ± 1 %

Temperature resolution @ 30 °C Up to 0.035 K / Up to 0.022 K in high-speed mode

Frame rate (full frame mode / 960 × 768) Up to 100 Hz / 300 Hz, (identical FOV)

VarioCAM® HD

Thermographic Infrared Solution for Use in Industry and Research

Spectral range (7.5 … 14) µm

Detector Uncooled Microbolometer Focal Plane Array

Detector format (IR pixels) (1,024 × 768), with built-in opto-mechanical high-precision scan unit (2,048 × 1,536)*

(640 × 480), with built-in opto-mechanical high-precision scan unit (1,280 × 960)* Temperature measuring range (-40 … 2,000) °C* Measurement accuracy ± 1 °C or ± 1 %*

Temperature resolution @ 30 °C Up to 0.02 K*

Frame rate Full-frame: 30 Hz (1,024 × 768), sub-frame formats*: 60 Hz (640 × 480) /

120 Hz (384 × 288) / 240 Hz (1,024 × 96)

Full-frame: 60 Hz (640 × 480), sub-frame formats*: 120 Hz (384 × 288) /

 240 Hz (640 × 120)
