OPTICAL EXTENSOMETERS
X-Sight optical extensometers deliver high-precision measurements for material testing, using advanced optics for accurate strain and deformation analysis. Ideal for materials science and engineering applications, they provide non-contact measurements, ensuring the integrity of the sample. With a user-friendly interface, these extensometers simplify complex testing procedures, making them essential tools for research and quality control in manufacturing.
X-Sight Product Category
Click on the products below to navigate around faster
OPTICAL EXTENSOMETERS

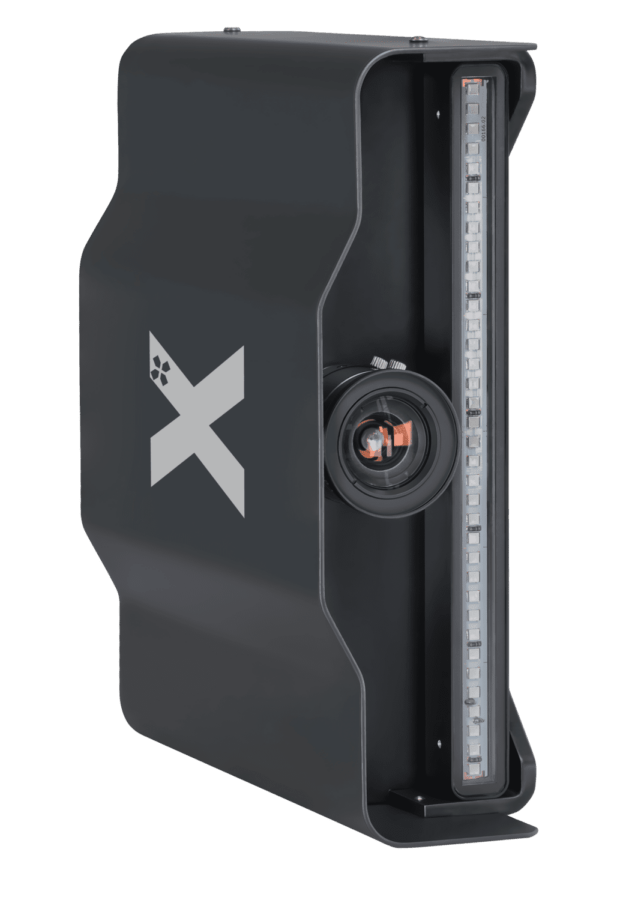

X-Sight 2000 Series optical extensometers demonstrate state-of-the-art digital correlation technology. All X-Sight measuring systems deliver accurate and precise strain measurement readings.
Ease-of-use and numerous industry-leading software features make the X-Sight 2000 Series VE (video extensometer) an excellent choice for many applications, including tensile, compressive, bending, shear, torsional, and fatigue testing. All this on a wide range of test frames, from small-scale single-column machines to the largest, four-column UTMs.
Any set of two standard X-Sight 2000 Series optical extensometers can be converted into a 3D system using the dual mode and the 3D DIC software module.
2D DIC SYSTEM
The X-Sight 2D DIC system is a straightforward single- or multi-camera measuring device suitable for experimental validation of your designs, calculations, and numerical simulations. It is ideal for assessing various mechanical characteristics of your machines, assemblies, and structures.
Equipped with advanced digital image correlation software, X-Sight 2D DIC provides precise and accurate real-time strain and deformation measurement and delivers results with nanometric resolution. Software postprocessing allows for comfortable browsing and reassessment of stored data from previous measurements.
The system can also be used as the most advanced customized optical extensometer and can be easily upgraded to X-Sight 3D DIC.
3D DIC SYSTEM
The X-Sight 3D DIC optical measuring system is versatile, complex, and easy to operate. X-Sight 3D DIC is an adaptable system for sophisticated and varied stereoscopic strain analysis involving out-of-plane deformations and motion measurements. Its high accuracy and reliability guarantee robust data outputs for various applications, including high-speed imaging. The system can also be used as the most advanced customized optical extensometer.
With comprehensive post-processing analytic functionality, the system provides an effective way to validate FEM results, verify CAD models, and perform structural deformation analyses.
Frequently Asked Questions About
optical extensometers
What is optical extensometer?
An optical extensometer is a high-precision, non-contact instrument used to measure strain, elongation, and deformation of materials during mechanical tests such as tensile, compression, flexural, biaxial, torsion, and shear testing. It uses optical (camera-based) technologies to monitor and analyze the deformation of a test specimen, providing real-time measurements without physically touching the sample.
Where Is optical extensometer Used?
Optical extensometers are used in a broad range of applications across research, quality control, and industrial materials testing. Their principal advantage is precise, non-contact measurement of strain and deformation.
